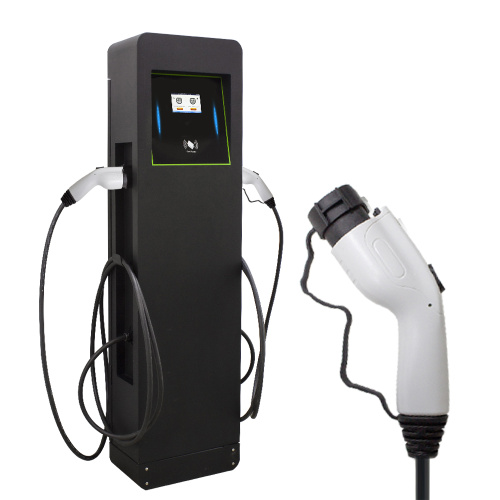

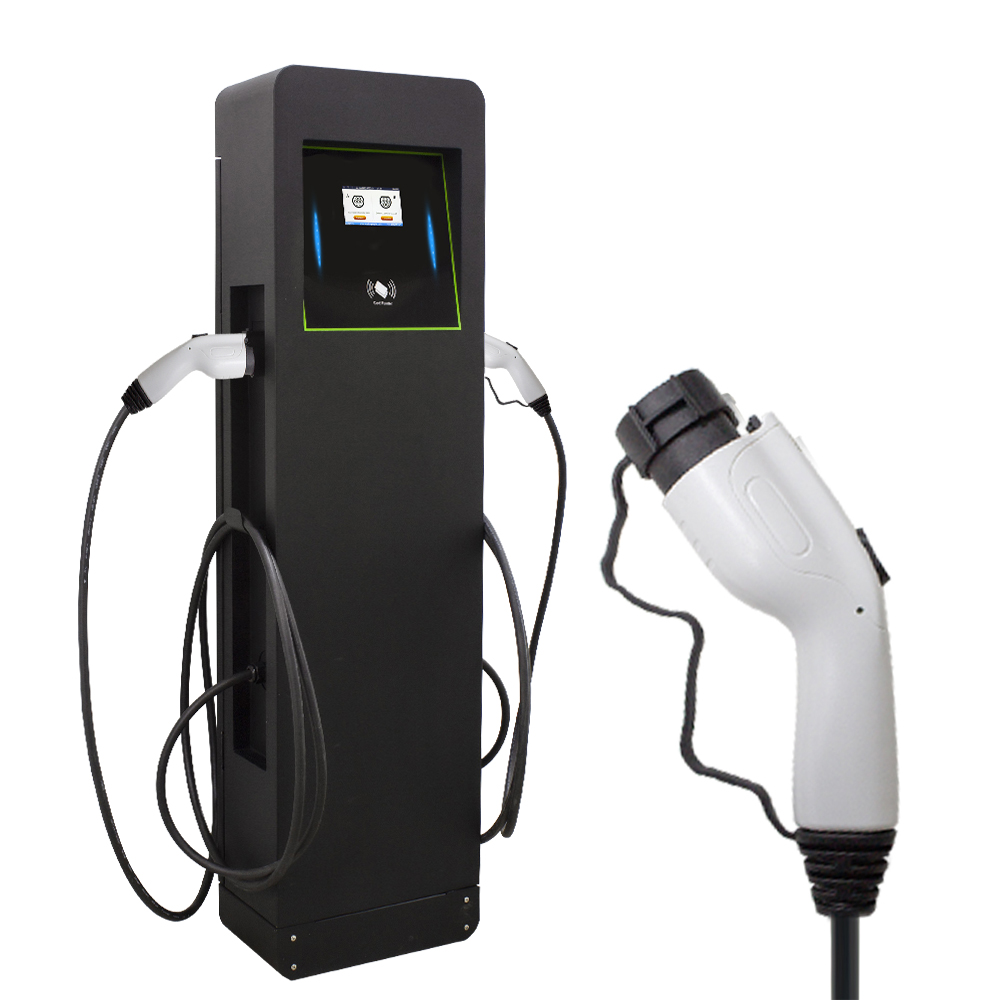

| Product Series | Commercial-DOUBLE GUN |
| Charging interface | SAE J1772 |
| Input Voltage Range | 120VA ± 20% (LEVEL 1) / 240VA ± 20%(LEVEL 2) |
| Output Voltage Range | 120VA ± 20% (LEVEL 1) / 240VA ± 20%(LEVEL 2) |
| Rated output current | 16A/32A/50A |
| Rated power | 7.6kW+7.6KW / 12KW+12KW |
| Working Frequency | 45/65 Hz |
| Networking method | 4G/WIFI/LAN |
| Bluetooth | NA |
| Control mode | OCPP1.6 J (QR code / RFID) |
| IP grade | ≥ IP55 |
| Working Temperature | -40℃～ +60℃ |
| Working Humidity | 5%-95% Non-condensing |
| Special Protection | UV resistance |
| Working altitude | ≤ 2000m |
| Operating instructions | On-screen display / Buzzer |
| Status indication | On-screen display /LED breathing light |
| Application Scenario | Outdoor indoor parking and charging |
| Weight | <46.3 kg |
| Dimension | 1500(H)mm x 400(W)mm x 230(D)m |
